Farming Machinery Tillage Advanced Great Quality High Durable Satisfaction Wholesale Check Valve

Home » Products » 7.Check Valve » Farming Machinery Tillage Advanced Great Quality High Durable Satisfaction Wholesale Check Valve

Farming Machinery Tillage Advanced Great Quality High Durable Satisfaction Wholesale Check Valve

The shuttle valve is equivalent to two check valve combination valve , and its role is equivalent to"OR gate".There are 3 waysvalves , which detect the higher pressure signal between 2input signal.

Model:
【P52】RHV-R Check Valve
Brand:
WEISENBL

Quantity:
Availability:





Inquire Add to Basket

Check Valve Relief Valves Hydraulic Lock Flow Control Valve Control valve Overcenter Control Valve Pressure Control Valve Proportional Valve Directional Control Valve Flow Valve

Product Description

OEM Hydraulic fitting Stainless Steel Solenoid Valve body Check Valve fittings

Stainless Steel Solenoid Valve body / Stainless Steel Non-Standard Machining Parts

More Information

1.Samples Delivery Time

Two days - our existing samples

10-15 days - If new sample development

2.Shipment Delivery Time: 25-35 days after confirming the order

3.Production Capacity :300000 pcs each month,

4.Packing Details : put the fittings layer by layer in master carton

5.Testing : Material Testing ,Hardness Testing ,Key Dimention Testing,Gauge Testing

6.Inspection: Each cargo will be inspected before shipping. The third-party inspection company is acceptable.

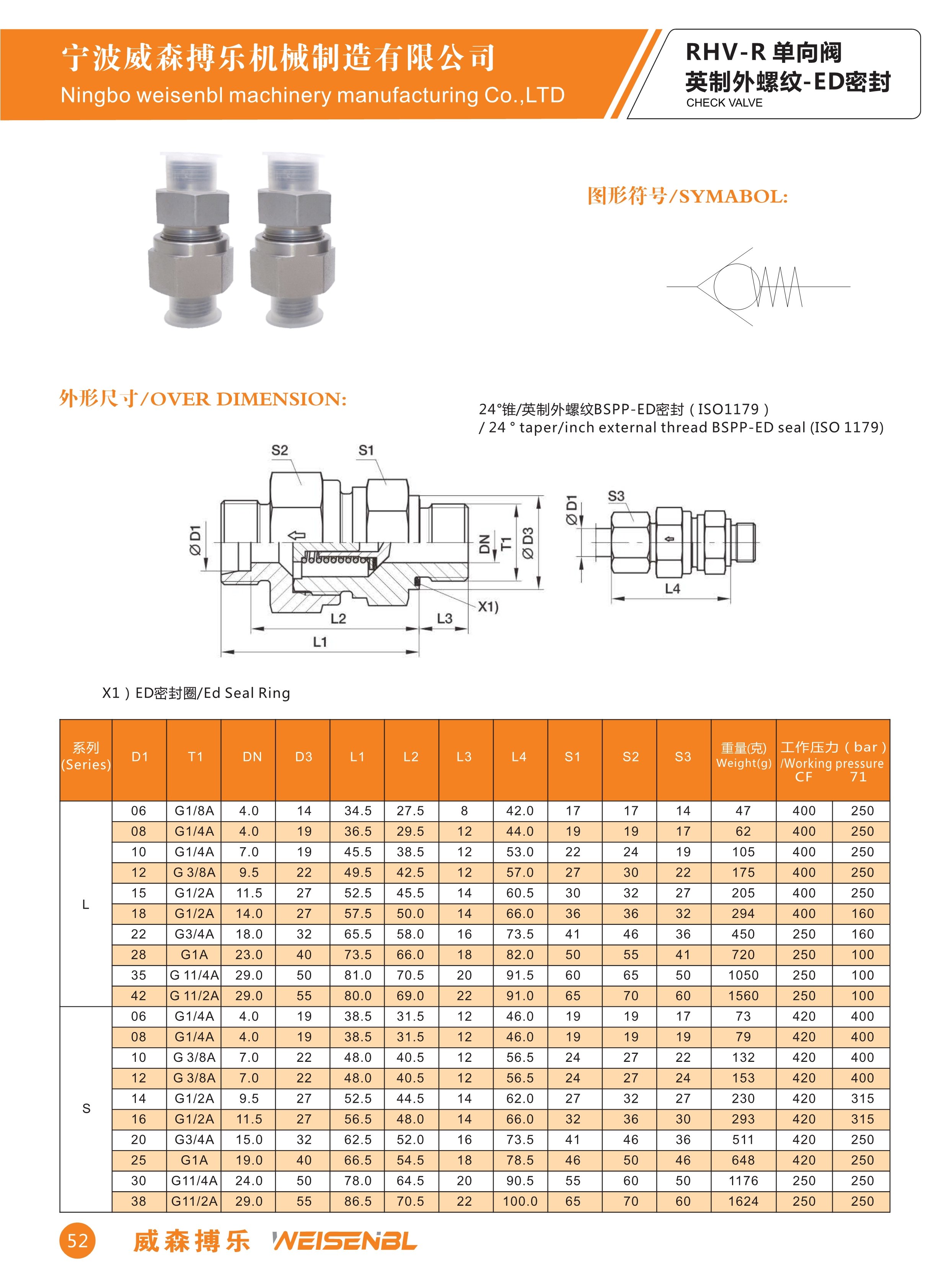

Series	D1	T1	DN	D3	L1	L2	L3	L4	S1	S2	S3	Weight(g)	(bar) /Working pressure CF 71
L	06	G1/8A	4.0	14	34.5	27.5	8	42.0	17	17	14	47	400	250
	08	G1/4A	4.0	19	36.5	29.5	12	44.0	19	19	17	62	400	250
	10	G1/4A	7.0	19	45.5	38.5	12	53.0	22	24	19	1 05	400	250
	12	G 3/8A	9.5	22	49.5	42.5	12	57.0	27	30	22	175	400	250
	15	G1/2A	11.5	27	52.5	45.5	14	60.5	30	32	27	205	400	250
	18	G1/2A	14.0	27	57.5	50.0	14	66.0	36	36	32	294	400	160
	22	G3/4A	18.0	32	65.5	58.0	16	73.5	41	46	36	450	250	160
	28	G1A	23.0	40	73.5	66.0	18	82.0	50	55	41	720	250	100
	35	G 11/4A	29.0	50	81.0	70.5	20	91.5	60	65	50	1050	250	100
	42	G 11/2A	29.0	55	80.0	69.0	22	91.0	65	70	60	1560	250	100
S	06	G1/4A	4.0	19	38.5	31.5	12	46.0	19	19	17	73	420	400
	08	G1/4A	4.0	19	38.5	31.5	12	46.0	19	19	19	79	420	400
	10	G 3/8A	7.0	22	48.0	40.5	12	56.5	24	27	22	1 32	420	400
	12	G3/8A	7.0	22	48.0	40.5	12	56.5	24	27	24	153	420	400
	14	G1/2A	9.5	27	52.5	44.5	14	62.0	27	32	27	230	420	315
	16	G1/2A	11.5	27	56.5	48.0	14	66.0	32	36	30	293	420	315
	20	G3/4A	15.0	32	62.5	52.0	16	73.5	41	46	36	511	420	250
	25	G1A	19.0	40	66.5	54.5	18	78.5	46	50	46	648	420	250
	30	G11/4A	24.0	50	78.0	64.5	20	90.5	55	60	50	11 76	250	250
	38	G11/2A	29.0	55	86.5	70.5	22	100.0	65	70	60	1 624	250	250
